8000 - GOAT Garage Doors

model 8000

The right choice when maximum light and visibility are required. Ideally suited for all residential, commercial, and retail establishments. Choose from a variety of glazing options including glass, acrylic, insulated glass or aluminum panels.

overview

1/8″ Glass

* 8100 Feature

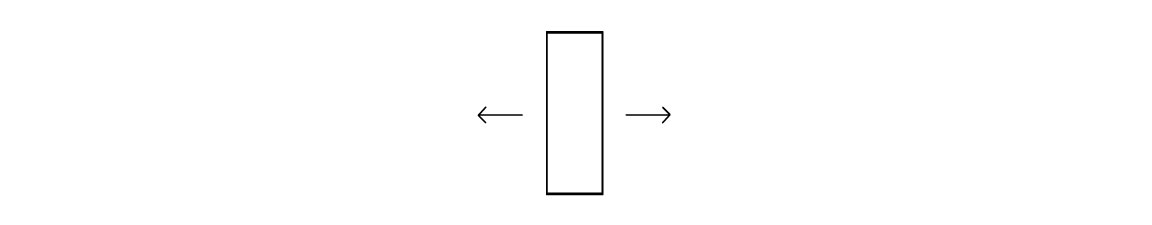

1/4″ Glass

* 8400 Feature

1/2″ Insulated Glass

* 8500 Feature

Full Panel Image
Colors may vary from actual product

FEATURES

Door Sections

Door sections are 2″ thick and consist of extruded aluminum rails and stiles assembled with 5/16″ threaded rods and nuts. Glazing is sealed on all four sides and retained on all four sides with extruded aluminum snap-in beads. The end stiles have a visible width of 3 3/8″. Center stiles have a visible width of 2 3/4″. Top rail has a visible height of 4 1/4″. Bottom rail has a visible height of 4 1/4″ or 7 1/4″ depending on door size and weight. Combined meeting rails have a visible height of 2 1/2″. Lower meeting rail has an integral reinforcing fin on doors over 12′ 2″ wide (Model 8100) or over 10′ 2″ wide (Models 8400 and 8500).
