model 6500

Constructed of top quality materials with pebble embossed finish, designed for each application and engineered for years of dependable operation.

overview

2″ thick insulated 3 layer sandwich panel

1.0 MIL
PAINT WITH 3 COLOR
OPTIONS

(R-VALUE)

STEEL
INTERIOR
SKIN

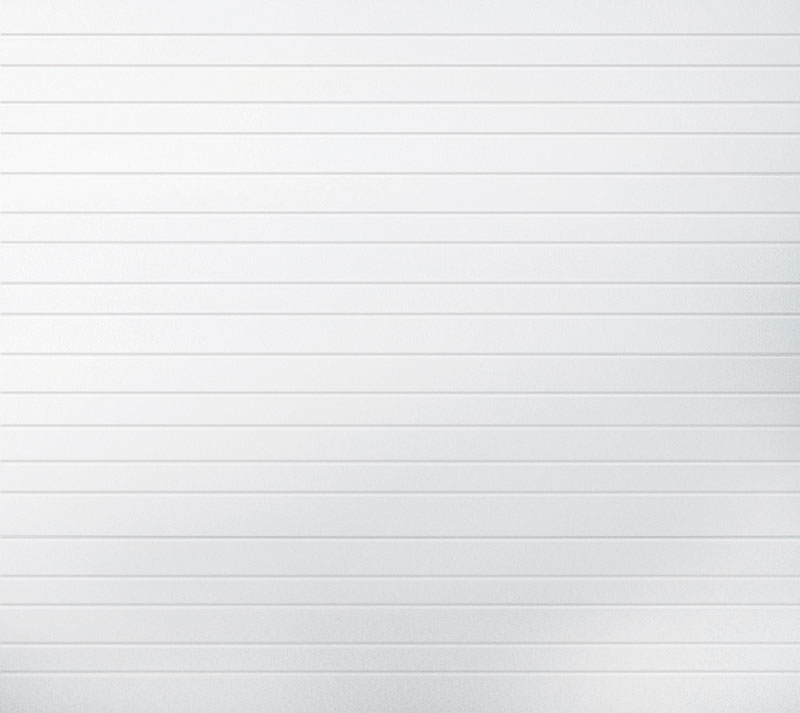

Full Panel Image
Colors may vary from actual product

FEATURES

Nominal 24 gauge steel panel and 26 gauge steel interior panel

Panels are pebble grain embossed on exterior and interior. Exterior panels are formed with four small grooves. Sections are 2” thick with polystyrene insulation pressure bonded to both panels.

Tongue and groove meeting rails

For superior strength and better sealing against wind, rain, and snow.

20 gauge galvanized steel end caps

Heavy duty metal stiles give strong rigid support for all hinges, rollers, and operator attachment.

20 gauge hot dipped steel hinge plates

Galvanized steel hinge plates run the full height of each section at all hinge locations to facilitate the attachment of hinges, handles, struts, and step plates.

R-Value 10.25

Sandwich type construction with polystyrene insulation pressure bonded between two sheets of hot dipped galvanized steel enhances your home’s energy savings, makes your door operation quieter, and reduces exterior noise in your garage.

Glazing

Glazing

Options of 24″ x 6″ or 24″ x 12″ windows are available. Optional Series 8000 Full View sections can be substituted for steel sections up to 20′ 2″.

Finish

1.0 mil paint system includes .25 mil rust inhibiting primer and .75 mil top coat that resists fading and chalking, while providing consistent color from panel to panel and more durability.

Rigid aluminum retainer with weatherstrip

Provides added strength while securing replaceable U-type bottom astragal weatherstrip to help keep the elements out.

Wind Load

Wind Load

Consult factory for available wind load rated options.

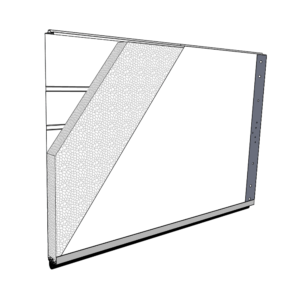

CONSTRUCTION

Disclaimer: This is showing the construction of 4501

OPTIONS

Color Options*

White

sandstone

Brown

Gray

Charcoal

*Est availability end of Q1 2025

Black

*Disclaimer:

Colors may vary from actual product.

Size Options

Up to 9’2″
Commercial-doors-upto-9_2-1024x98
9’3″ to 12’2″
Commercial-doors-9-12-1024x98
12’3″ to 17’2″
Commercial-doors-12-17-1024x98
17’3″ to 18’2″
Commercial-doors-17-18-1024x98
18’3″ to 24’2″
Commercial-doors-18-24-1024x98

Section Heights: 18″, 21″, 24″

Window Options

24" x 6"

24" x 12"

Window Glass Options

Contact your supplier for options
